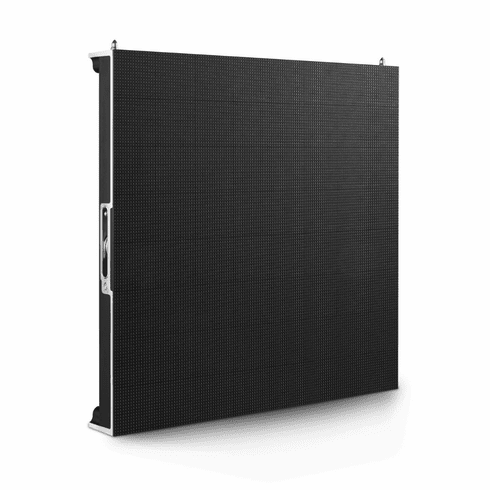

MARATHON ® MA-VP1.9RCF
Zoom

MARATHON ® MA-VP1.9RCF

Item# MA-VP19RCF
$0.01

Product Description



Completely front service
Modules, power supplies and receiving cards can be taken out from the front, support wall-mounted installation.

Seamless connection
Achieve seamless connection for modules with no backside cover, guarantee the high precision.

Easy installation and disassembly
Adopt talon lock design, with super slim and light weight cabinet, achieve very fast installation.

Signal cable groove design
Unique cable groove design, the connector will not loose when swinging or pulling, ensuring stable output.

GOB solution available
GOB technology, waterp roof, anti -dust, ant i- collision, anti-UV, decrease the maintenance cost, very stable and reliable.

Super slim and light weight

Super light

Complete front access

Easy installation

Easy maintenance


Pixel pitch
LED type
Pixel configuration
Size of module
Resolution of module
Density( dots/m2)
Size of cabinet (mm)
Cabinet material
Weight of cabinet
Support hanging or not
Support front removeable or not
Max power consumption
Average power consumption
Gray scale
Color temperature
Driving method
Refresh frequency
Brightness
Brightness control
IP grade
1.9mm
SMD1515
1R1G1B
250mmx250mm
128x128
262144
500x500x82.5
Die-casting
8.3KG
Yes
Yes
600W/M2
200W/M'
16bits
3000-1 0000K
1/32 scanning
~ 3000Hz
800cd/m2
256 grade
IP30
